Stauff

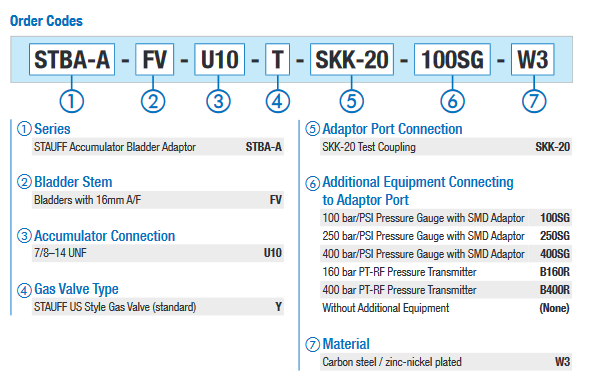

STBA-A-FV-U10-Y-SKK-20 Series STAUFF US Style Gas Valve Permanent Charging Heads
STBA-A-FV-U10-Y-SKK-20 Series STAUFF US Style Gas Valve Permanent Charging Heads
SKU: 6100162743
- Regular price
- Price: $680.16
- Regular price
- List Price: $654.00
- Sale price
- Price: $680.16
- Unit price
- per
5% off all orders over $1000 | Ends:
Couldn't load pickup availability
PRODUCT DESCRIPTION

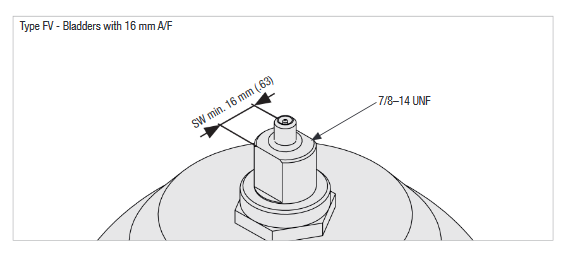

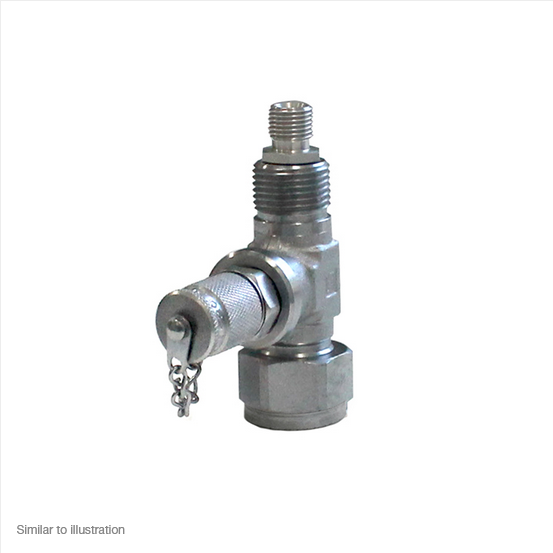

The STAUFF permanent charge head allows accessory equipment to be mounted directly onto the gas side of a bladder accumulator. For accumulators already installed in a system, the pre-charge pressure must be at zero pressure, then the existing gas valve fitted to the accumulator can be removed. The permanent charge head is then fitted directly to the accumulator’s 7/8” UNF bladder stem connection with 16 mm A/F.The STAUFF permanent charge head is supplied as standard with a STAUFF SKK-20 test coupling, which can easily allow other STAUFF accessories e.g. Safety pattern analogue pressure gauge, PT-RF pressure sensor or DIGI gauge to be fitted to the charge head.
Features

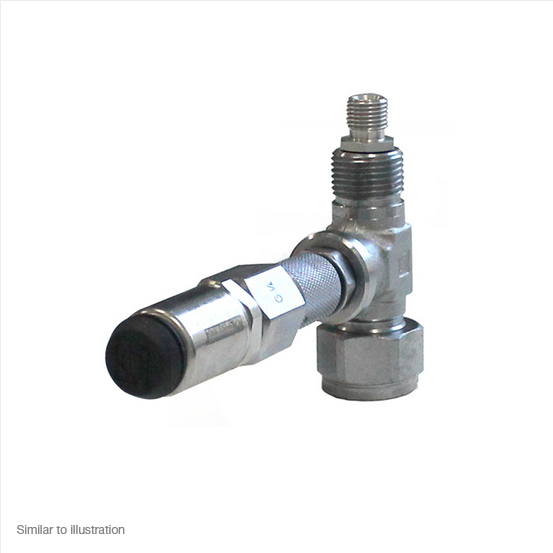

- Allows accessory equipment such as pressure gauges, PT-RF pressure sensors or DIGI gauge to be mounted to the gas side of either the bladder accumulator

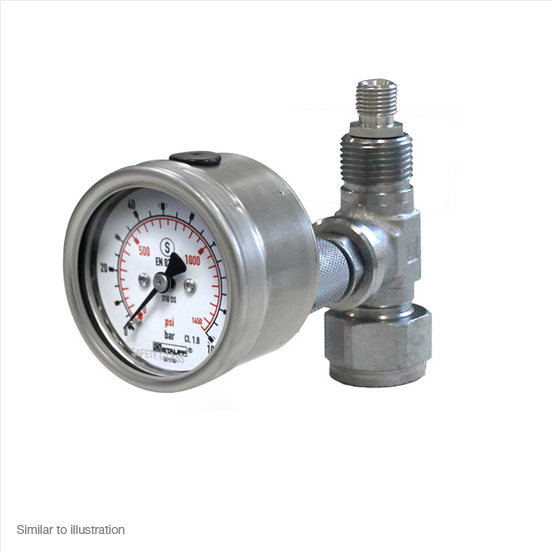

- Safety Patten analogue pressure gauge enables the checking of the pre-charge without having to use an accumulator charging kit
- Suits most common brands of bladder accumulators fitted with a 7/8–14 UNF bladder stem connection
