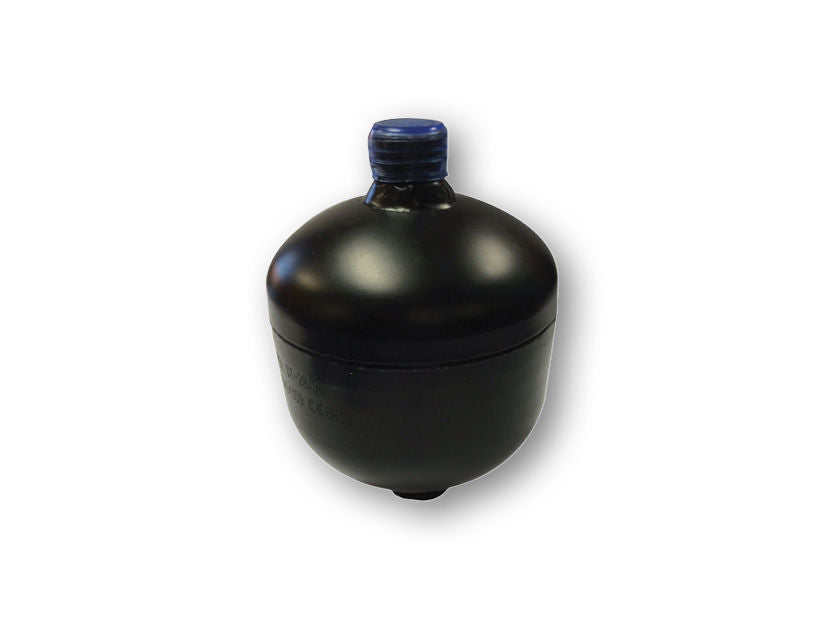

SDA Diaphragm Accumulators

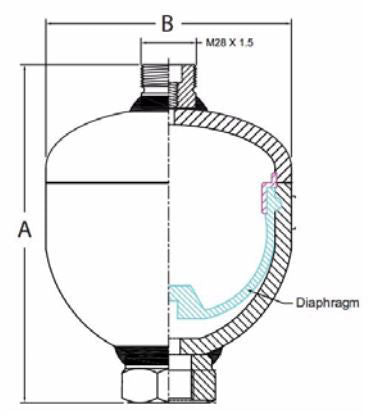

The diaphragm accumulator consists of a fluid section and a gas section with the diaphragm acting as a gas-proof screen. The fluid section is connected with the hydraulic circuit so that the diaphragm accumulator takes in fluid when pressure increases and the gas is compressed. When the pressure drops, the compressed gas expands and forces the stored fluid into the circuit. The diaphragm accumulator is regarded as a non-repairable unit. Construction: Welded seam Diaphragm: Alternatives available on request Installation: Mount in any position Working Temperature: -10°C to 80°C Maximum Allowable Pressure Ratio: <6:1 Charging Kit: Available

***All accumulators are uncharged***

***Charging is done on request and is an extra fee***

***Charged accumulators are freighted at extra cost as “dangerous goods” for government regulations***
